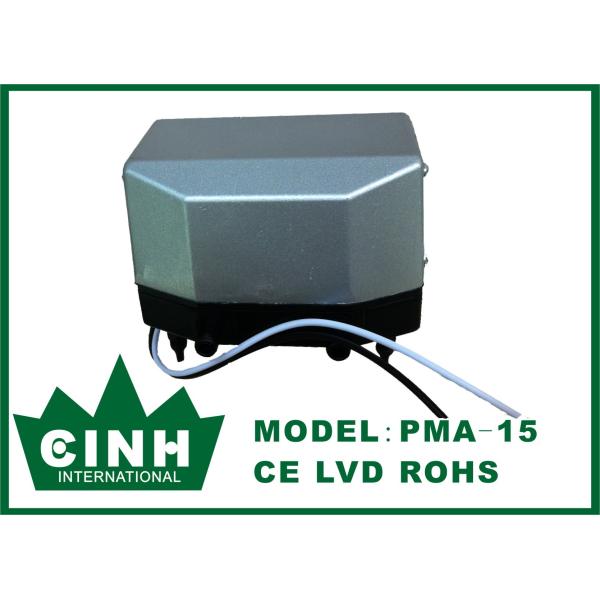

Vacuum Electric Air Diaphragm Pump , Low Power Consumption

Quick Detail:

15L/m air flowrate
30kpa air pressure
Double diaphragm, duckbill valves
Aluminum body
Continuous working day and night
lifetime more than 20,000hours
size:106x76x74 mm
weight:0.62 kg
Outlet & Inlet Dia: 0.3" (7.6 mm)


Description:

CINH Mini AC Electromagnetic Air Pump PMA-15 series use a unique linear motion design that has the capability of over 20,000 hours of continuous maintenance-free operation. They are compact, cool and highly reliable and inexpensive.

Features:

• Compact size
• Steady air outputs with low noise
• Very low vibration
• Low power consumption
• Economical

Applications:

intermittend pneumatic compression(medical)
compression therapy
ozone generator
aquarium
recovery system
fragrance diffuser
air bed
Atmospheric Detection
Dosing chemical material
air cloth
medical applications
industrial applications


Specifications:

Air Output: 30SCFH(15Lpm)
Pump Pressure: 4.5PSI(30kpa)
Power Requirement: AC220V,AC120V, AC24V or AC12V, 50Hz or 60Hz
Power Consumption: 10W
Pump Design: Double diaphragm, duckbill valves
Pump Body: Aluminium
Outlet & Inlet Dia: 0.3"(7.6mm)
Electrical Connections: 1-ft(300mm)Insulated wire pair
Noise Level: 40db unconnected, connected operation will reduce db level
Dimension(LxWxH): 4.2"x3"x2.9"(106x76x74mm)
Net Weight: 0.62kgs

Performance Curve

Competitive Advantage:

long lifetime, low noise, high quality, 15L/M air flowrate and 30kpa pressure, AC Electromagnetic Air Pump
