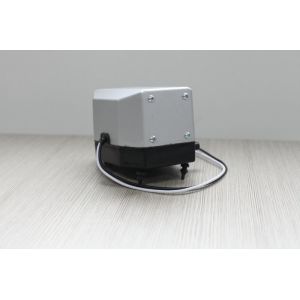

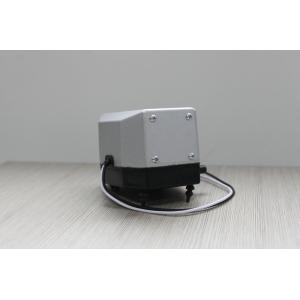

PMA-15 30KPA Medical Micro Air Operated Double Diaphragm Pump With Duckbill Valves 15L/M

Quick Detail:

1. Small diaphragm pumps with longer life expectancy with our advanced proprietary diaphragm elastomer.
2. Small-size pumps have a unique, compact, and lightweight design making it ideal for portable applications.
3. Our 100% oil and grease-free pumps maintain the purity of your system and are commonly used in FDA-approved systems.
4. Our diaphragm pumps are uniquely balanced to minimize noise and vibration and to maximize life.
ISO9001, CB, FDA, PAHs, REACH, RoHS compliant.

Applications:

intermittend pneumatic compression(medical)

compression therapy

ozone generator

aquarium

recovery system

fragrance diffuser

air bed

Atmospheric Detection

Dosing chemical material

air cloth

medical applications

industrial applications

Specifications:

Air Output: 30SCFH(15Lpm)

Pump Pressure: 4.5PSI(30kpa)

Power Requirement: AC220V,AC120V, AC24V or AC12V, 50Hz or 60Hz

Power Consumption: 10W

Pump Design: Double diaphragm, duckbill valves

Pump Body: Aluminium

Outlet & Inlet Dia: 0.3"(7.6mm)

Electrical Connections: 1-ft(300mm)Insulated wire pair

Noise Level: 40db unconnected, connected operation will reduce db level

Dimension(LxWxH): 4.2"x3"x2.9"(106x76x74mm)

Net Weight: 0.62kgs

Performance Curve

Competitive Advantage:

long lifetime, low noise, high quality, 15L/M air flowrate and 30kpa pressure, AC Micro Air Pump
