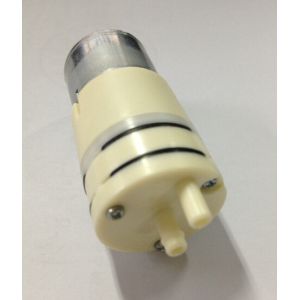

4.5PSI 12V Micro Air Compressor Pressure Switch Double Diaphragm 50Hz 60Hz

Quick Detail:

15L/m air flowrate

30kpa air pressure

Double diaphragm, duckbill valves

Aluminum body

Continuous working day and night

lifetime more than 20,000hours

size:106x76x74 mm

weight:0.62 kg

Outlet & Inlet Dia: 0.3" (7.6 mm)

Description:

CINH Mini AC Micro Air Compressor QBF-15 series use a unique linear motion design that has the capability of over 20,000 hours of continuous maintenance-free operation. They are compact, cool and highly reliable and inexpensive.

Features:

• Compact size
• Steady air outputs with low noise
• Very low vibration
• Low power consumption
• Economical

Applications:

intermittend pneumatic compression(medical)

compression therapy

ozone generator

aquarium

recovery system

fragrance diffuser

air bed

Atmospheric Detection

Dosing chemical material

air cloth

medical applications

industrial applications

Specifications:

Air Output: 30SCFH(15Lpm)

Pump Pressure: 4.5PSI(30kpa)

Power Requirement: AC220V,AC120V, AC24V or AC12V, 50Hz or 60Hz

Power Consumption: 10W

Pump Design: Double diaphragm, duckbill valves

Pump Body: Aluminium

Outlet & Inlet Dia: 0.3"(7.6mm)

Electrical Connections: 1-ft(300mm)Insulated wire pair

Noise Level: 40db unconnected, connected operation will reduce db level

Dimension(LxWxH): 4.2"x3"x2.9"(106x76x74mm)

Net Weight: 0.62kgs

Performance Curve

Competitive Advantage:

long lifetime, low noise, high quality, 15L/M air flowrate and 30kpa pressure, AC Micro Air Compressor
